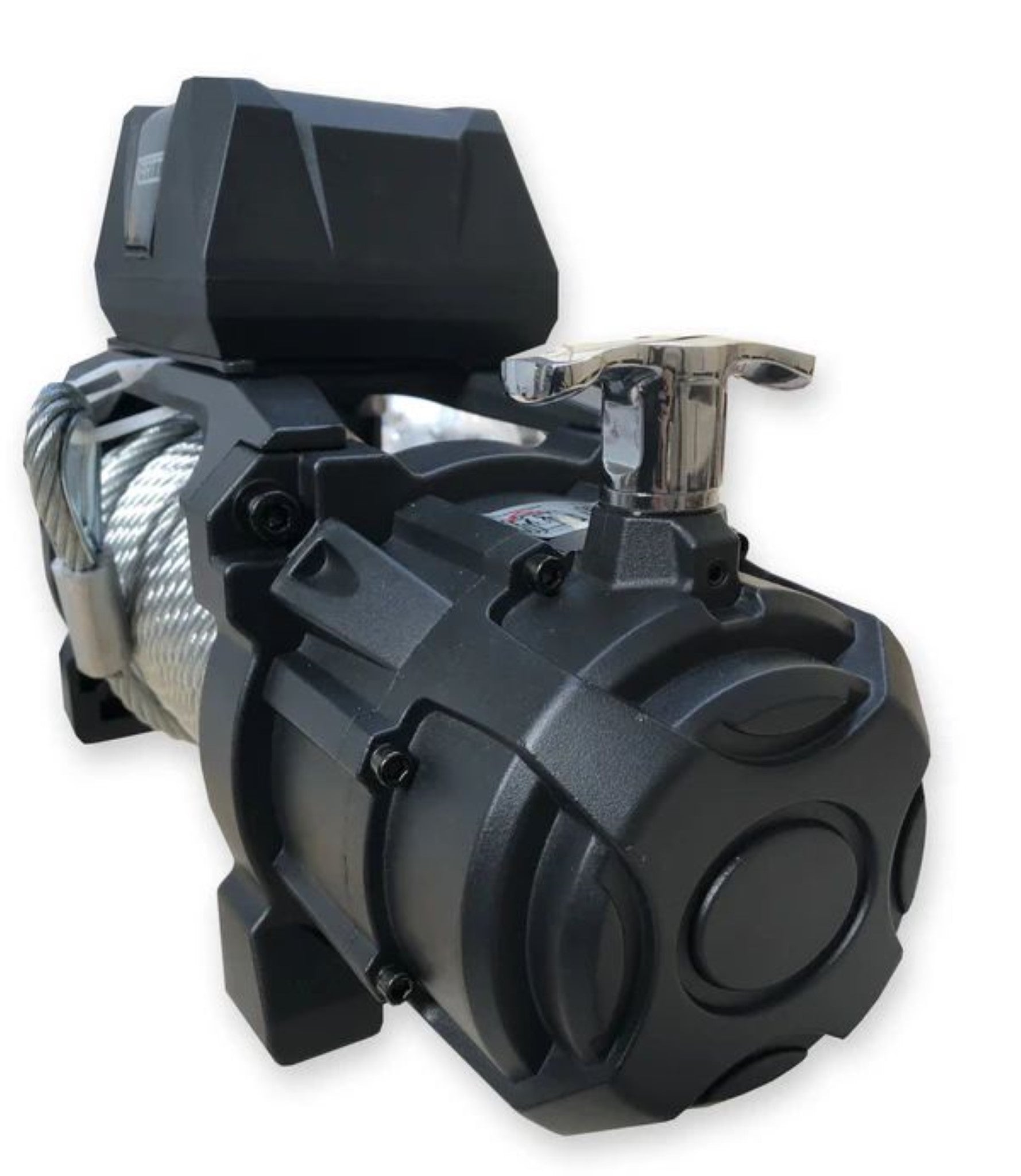

13500 lbs 12v Electric Winch Steel Wire
13500 lbs 12v Electric Winch Steel Wire
Kartt
Couldn't load pickup availability
Short Description
The KARTT 13,500 lb 12V Electric Winch with Steel Wire is a heavy-duty recovery winch designed for recovery trucks, light trailers and 4x4s. Featuring a 3-stage planetary gearbox, automatic in-drum brake, twin wired and wireless controllers, and IP67 waterproof protection, it delivers strong and dependable pulling power for demanding recovery situations.
Key Features
- Heavy-duty 12V electric winch for recovery trucks, light trailers and 4x4s
- 13,500 lb single-line maximum pulling force
- Maximum pulling force of 6,133 kg stated by supplier
- 3-stage planetary gearing for strong, controlled recovery performance
- 216:1 gear ratio
- 12V DC 6.8HP series wound motor
- Automatic in-the-drum brake
- Sliding ring gear clutch lever for freespooling
- Steel wire rope 9.5 mm x 26 m with hook

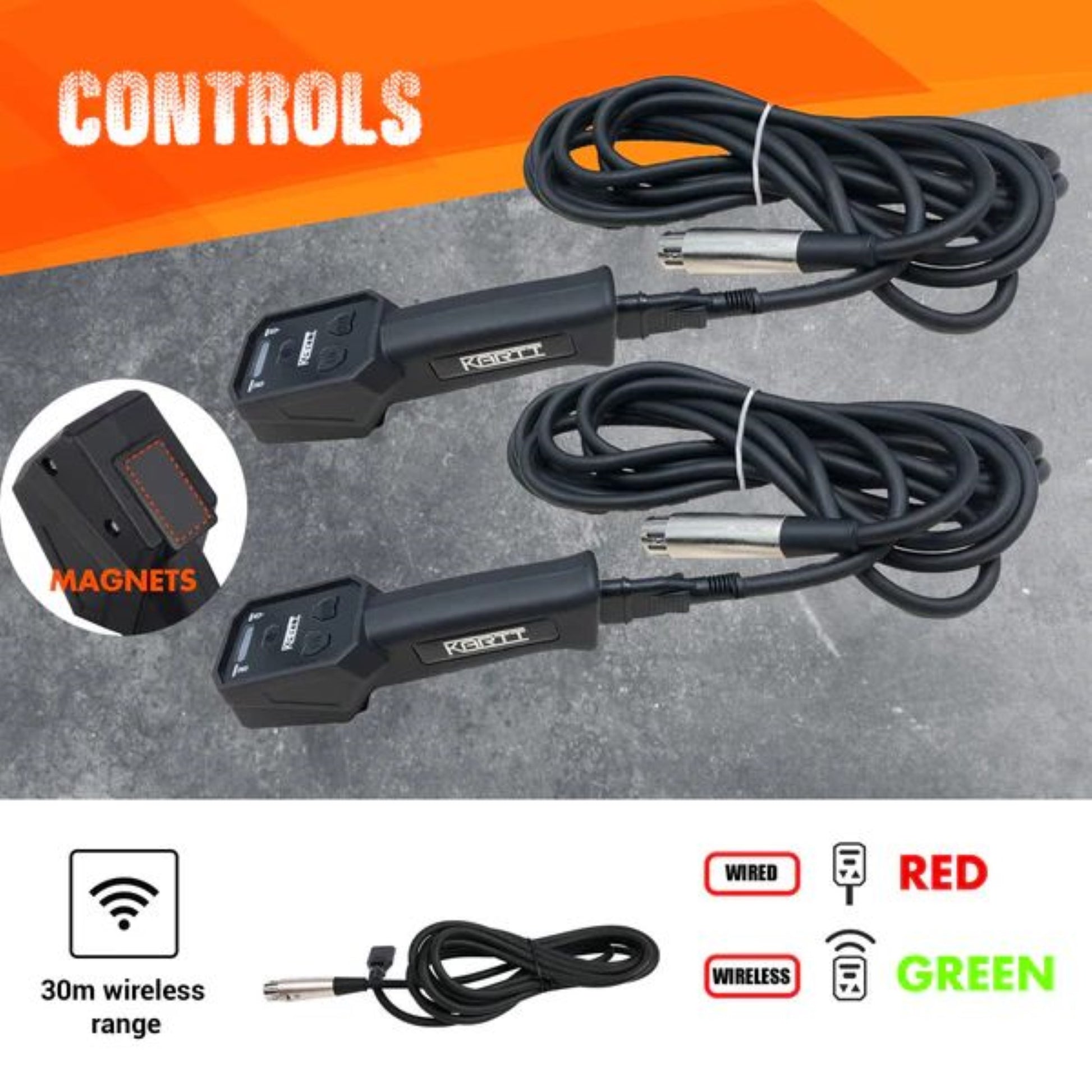

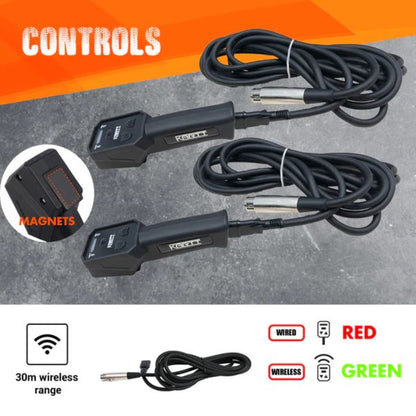

- Twin wired and wireless handheld remote controls included
- EN14492:1 compliant for professional use
- CE certified
- IP67 waterproof rated
Product Description
The KARTT 13,500 lb 12V Electric Winch with Steel Wire is built for vehicle recovery applications where dependable pulling power and controlled operation are essential. Designed for recovery trucks, light trailers and 4x4s, it combines strong recovery capability with practical features suited to off-road and utility use.
At the heart of the winch is a 3-stage planetary gearing system with a 216:1 gear ratio, helping deliver smooth and powerful operation under load. The 12V DC 6.8HP series wound motor provides the driving force, while the automatic in-the-drum brake enhances control during recovery. The sliding ring gear clutch lever allows for straightforward freespooling when needed.
The unit is supplied with twin wired and wireless handheld controllers, giving you added flexibility and convenience when operating the winch in different recovery situations. KARTT also states that all of its winches are EN14492:1 compliant for professional use and waterproof rated to IP67, making this model better suited to demanding outdoor conditions.

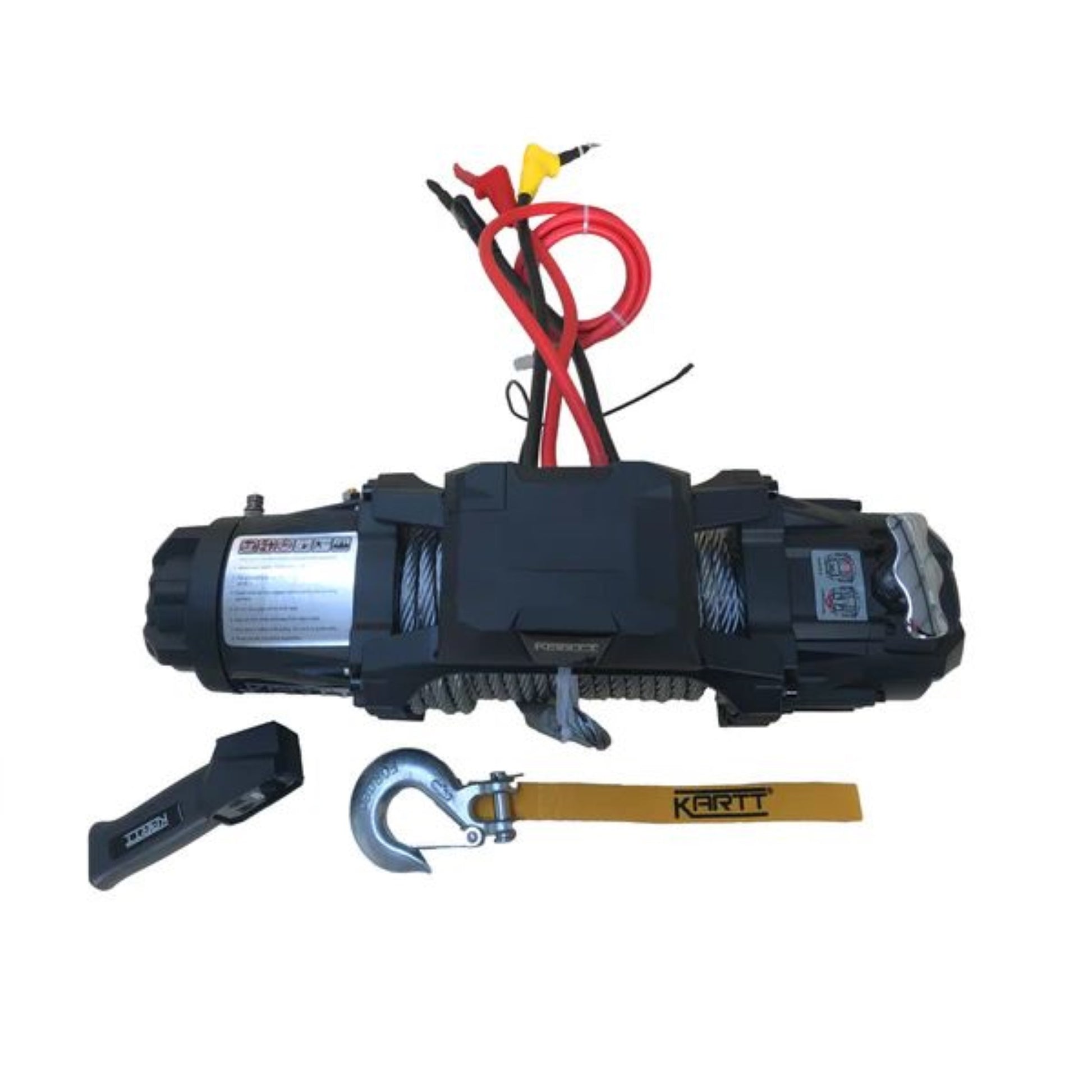

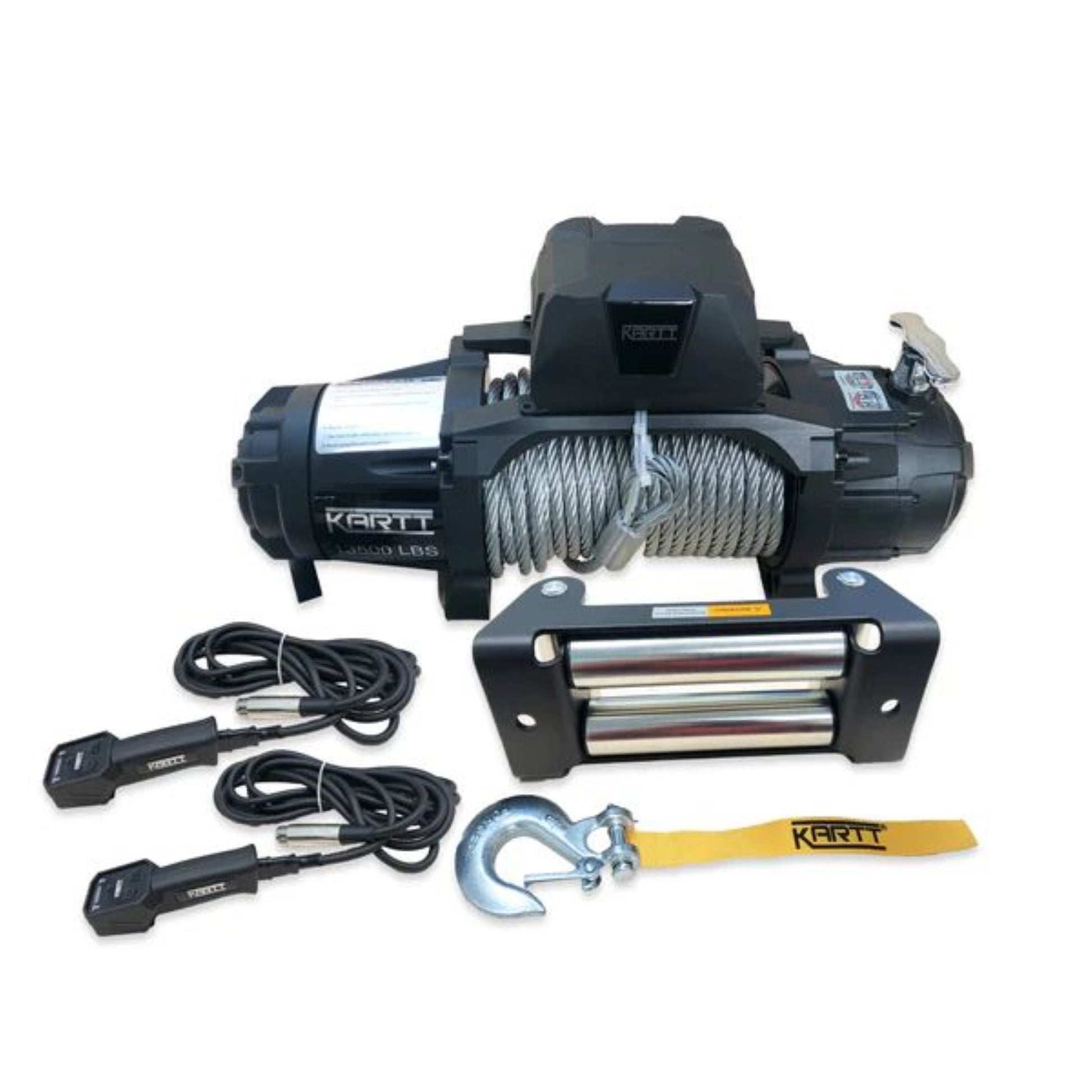

Included in the box are the winch itself, a roller fairlead, steel wire cable with hook, twin wired / wireless handheld remote controls, and a wired switch, giving you a more complete setup for installation and use.
Specifications
| Feature | Specification |
|---|---|
| Product Type | 12V electric recovery winch |
| Product Code | WK13512W |
| Rated Pulling Force | 13,500 lb |
| Max Pulling Force | 6,133 kg |
| Power Supply | 12V |
| Motor | 12V DC, 6.8HP series wound motor |
| Gearing | 3-stage planetary |
| Gear Ratio | 216:1 |
| Clutch Lever | Sliding ring gear |
| Brake | Automatic in-the-drum |
| Rope | Steel wire 9.5 mm x 26 m with hook |
| Remote Control | Wired & wireless x2 |
| Waterproof Rating | IP67 |
| Compliance | EN14492:1 |
| Certification | CE / EN144921:2006 +A1:2009 for Machinery Directive 2006/42/EC |
| Installed Weight | 39 kg |
| Shipping Weight | 40.5 kg |
Included in the Box
| Item | Included |
|---|---|
| Winch | Yes |
| Roller fairlead | Yes |
| Steel wire cable with hook | Yes |
| Wired / wireless handheld remote controls | Yes, x2 |
| Wired switch | Yes |
Mounting & Dimensions
| Feature | Specification |
|---|---|
| Bolt Hole Mounting Centres | 10" x 4.5" (254 mm x 114 mm) |
| Outer Case Dimensions | TBC |

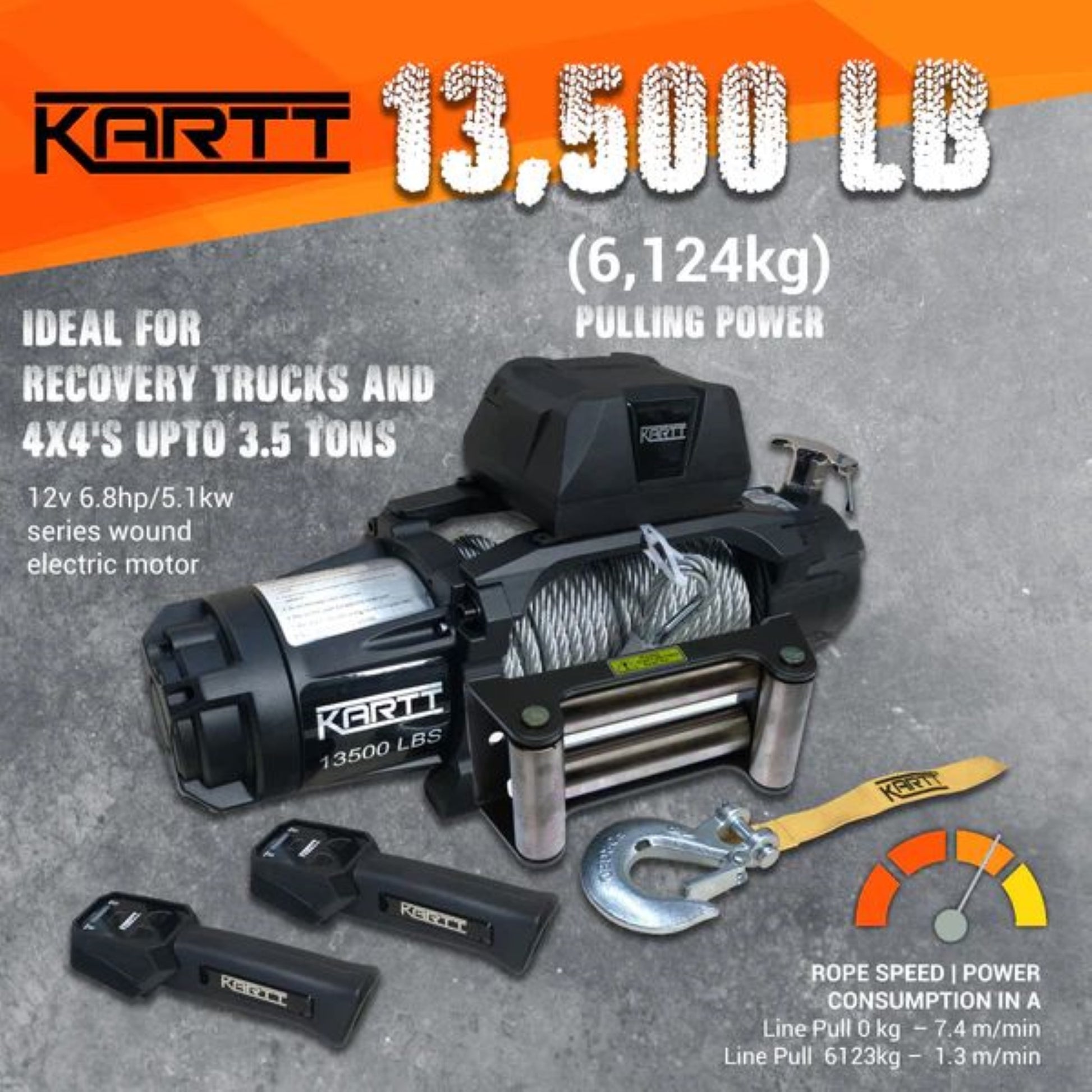

Performance Guide
| Line Pull | Rope Speed |
|---|---|
| 0 kg | 7.4 m/min |
| 6,123 kg | 1.3 m/min |
Recommended Accessories
- Neoprene winch cover
- Mounting plate
Which Setup Is This Best For?
13,500 lb winch → best suited to heavier-duty 4x4 recovery setups, recovery vehicles, and users wanting a stronger pulling capacity for larger or more demanding recovery jobs. This suitability note is an inference from the supplier’s stated pulling force and intended applications.
⚠️ Important Installation Information ⚠️
This winch is intended for vehicle recovery applications and should only be fitted to a suitable mounting system designed to handle the loads involved.
Before purchase, please ensure compatibility with:
- your vehicle or trailer
- your winch mounting plate or bumper
- your electrical system capacity
- your intended recovery use
Professional installation is recommended to ensure safe operation and correct fitment. This installation guidance is a safety recommendation based on the product’s function and supplier-stated specifications.
Notes on Power Usage
Prformance and current draw will vary depending on:
- recovery load
- cable or rope condition
- battery voltage
- wiring quality
- installation setup
- duration of winching
Higher pulling loads will increase current draw and reduce rope speed.
