9500 lbs 12v Electric Winch Synthetic Rope
9500 lbs 12v Electric Winch Synthetic Rope
Kartt
Couldn't load pickup availability
Short Description
The KARTT 9,500 lb 12V Electric Winch Synthetic Rope is a heavy-duty recovery winch designed for 4x4s and light trailers. Featuring a 3-stage planetary gearbox, automatic load-holding brake, wired and wireless control, and IP67 waterproof protection, it delivers strong and dependable pulling power for demanding recovery situations.
Key Features
- Heavy-duty 12V electric winch for 4x4s and light trailers.
- 9,500 lb / 42.3 kN rated pulling force.
- Maximum pulling force of 4,309 kg.
- 3-stage planetary gearing for strong, controlled recovery performance.
- 218:1 gear ratio.
- Automatic 100% load-holding brake.
- Manual clutch lever.
- Wired and wireless remote control included.
- EN14492:1 compliant for professional use.
- IP67 waterproof rated.
- Supplied with hawse fairlead, hook and wired switch.
- Suitable for recovery, off-road and utility applications. This is an inference based on the supplier’s stated intended use for light trailers and 4x4s.
Product Description
The KARTT 9,500 lb 12V Electric Winch Synthetic Rope is built for vehicle recovery applications where dependable pulling power and controlled operation are essential. Designed for use on 4x4s and light trailers, it combines strong recovery capability with practical features suited to off-road and utility use.
At the heart of the winch is a 3-stage planetary gearing system with a 218:1 gear ratio, helping deliver smooth and powerful operation under load. The automatic 100% load-holding brake enhances control during recovery, while the manual clutch lever allows for straightforward free-spooling when needed.
The unit is supplied with both wired and wireless control. KARTT also states that all of its winches are EN14492:1 compliant for professional use and waterproof rated to IP67, making this model better suited to harsh outdoor conditions.
This version is listed as the synthetic rope model and is supplied with a hawse fairlead, synthetic rope with hook, wired / wireless handheld remote control, and wired switch.
Specifications
| Feature | Specification |
|---|---|
| Product Type | 12V electric recovery winch |
| Product Code | WK95012S |
| Rated Pulling Force | 9,500 lb / 42.3 kN |
| Max Pulling Force | 4,309 kg |
| Power Supply | 12V |
| Gearing | 3-stage planetary |
| Gear Ratio | 218:1 |
| Clutch Lever | Manual |
| Brake | Automatic 100% load holding |
| Remote Control | Wired and wireless |
| Waterproof Rating | IP67 |
| Compliance | EN14492:1 |
| Certification | CE |
| Installed Weight | 28.4 kg |
| Gross / Shipping Weight | 29.6 kg |

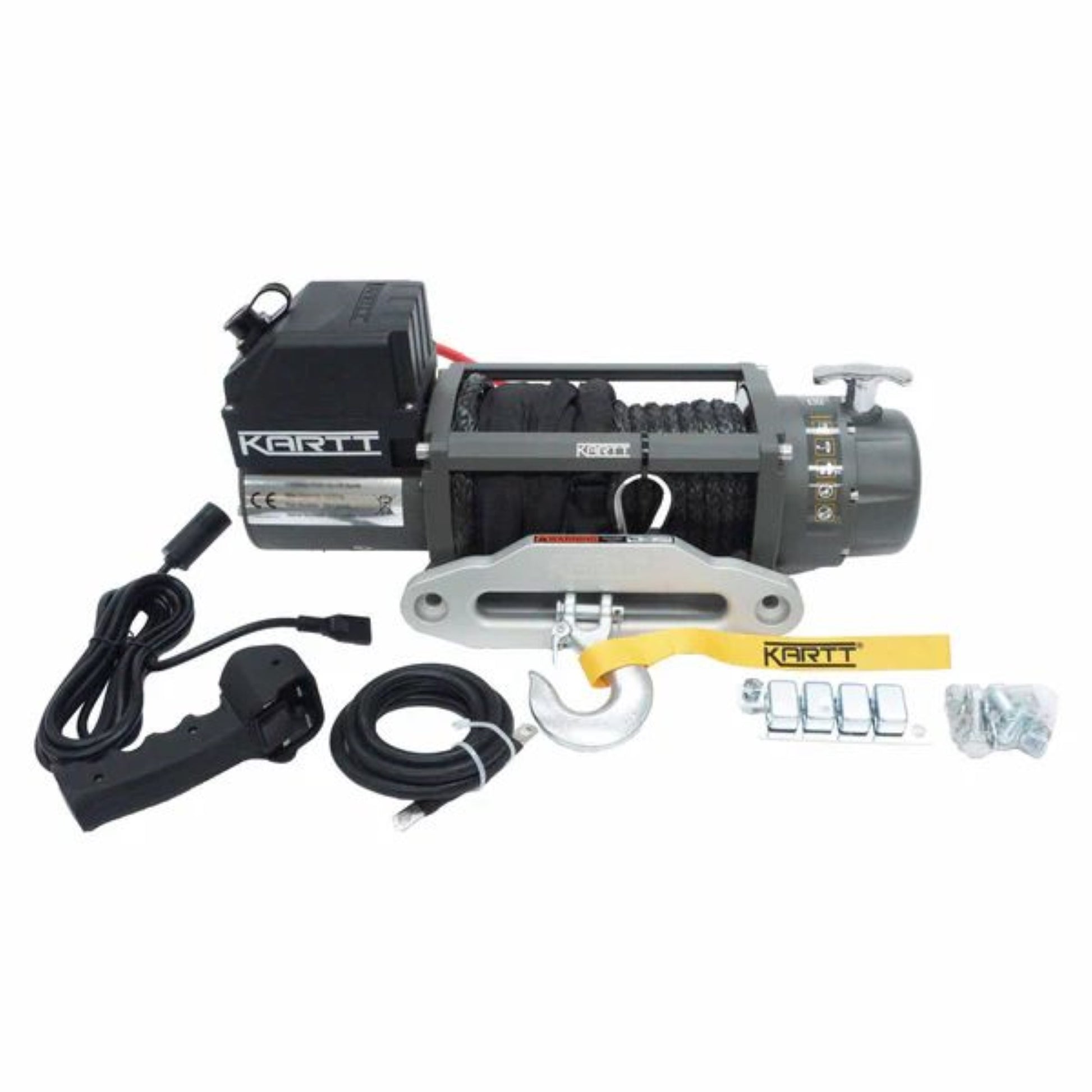

Included in the Box
| Item | Included |
|---|---|
| Winch | Yes |
| Hawse fairlead | Yes |
| Synthetic rope with hook | Yes |
| Wired / wireless handheld remote | Yes |
| Wired switch | Yes |

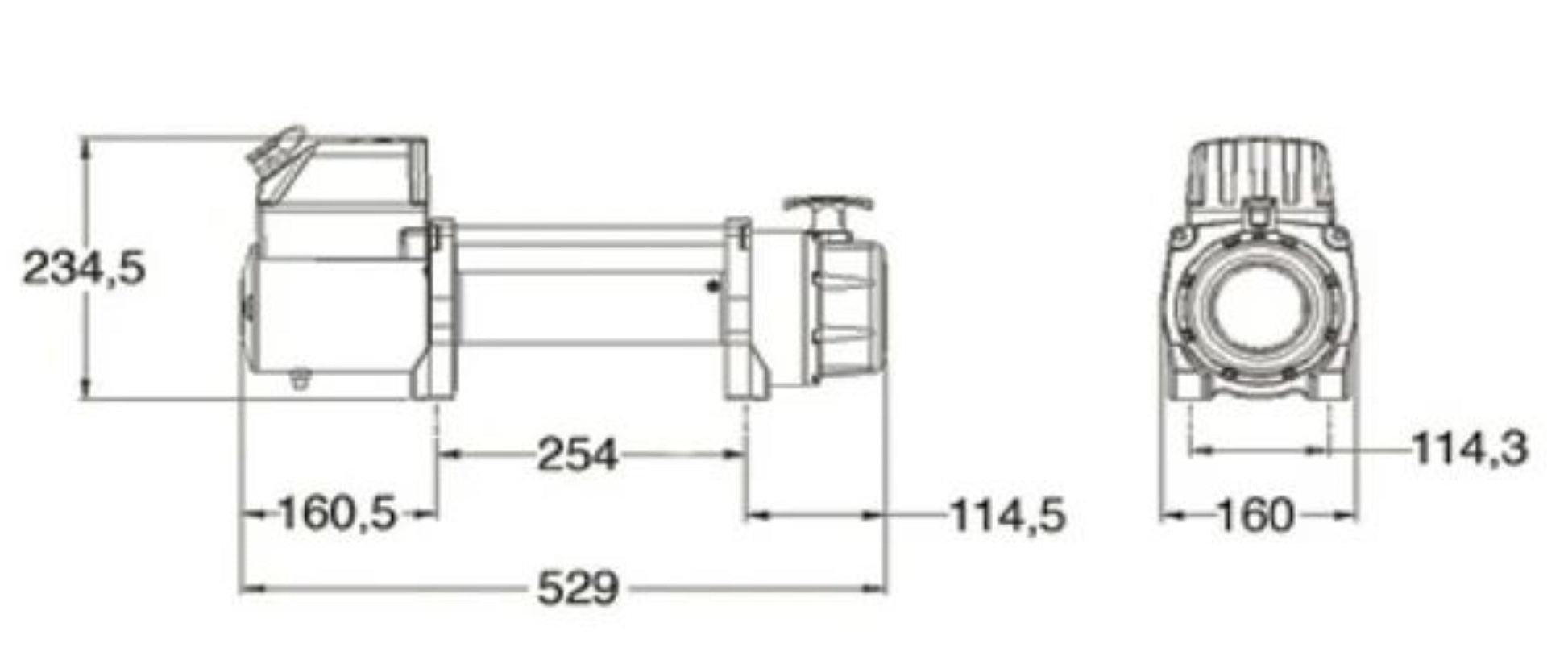

Mounting & Dimensions
| Feature | Specification |
|---|---|
| Mounting Centres | 254 mm x 114.3 mm |
| Outer Case Dimensions | 59.5 x 31.5 x 31 cm |
Performance Guide
| Line Pull | Rope Speed | Power Consumption |
|---|---|---|
| 0 kg | 6.8 m/min | 74A |
| 5,216 kg | 1.46 m/min | 350A |
Recommended Accessories
- Neoprene winch cover
- Mounting plate
Which Setup Is This Best For?
9,500 lb winch → suitable for 4x4 recovery setups and light trailers where strong pulling force is needed without stepping up to the larger, heavier-duty winch models. This suitability guidance is an inference based on the supplier’s stated intended use and pulling force.
⚠️ Important Installation Information ⚠️
This winch is intended for vehicle recovery applications and should only be fitted to a suitable mounting system designed to handle the loads involved.
Before purchase, please ensure compatibility with:
- your vehicle or trailer
- your winch mounting plate or bumper
- your electrical system capacity
- your intended recovery use
Professional installation is recommended to ensure safe operation and correct fitment. This installation guidance is a safety recommendation based on the product’s function and supplier-stated specifications.
Power Consumption Guide
Understanding winch current draw is important when planning your vehicle’s electrical setup. The KARTT 9,500 lb 12V Electric Winch Synthetic Rope draws approximately 74A at no load and up to 350A at maximum stated line pull in the supplier performance table.
Notes on Power Usage
Actual performance and current draw will vary depending on:
- recovery load
- cable or rope condition
- battery voltage
- wiring quality
- installation setup
- duration of winching
Higher pulling loads will increase current draw and reduce rope speed.
